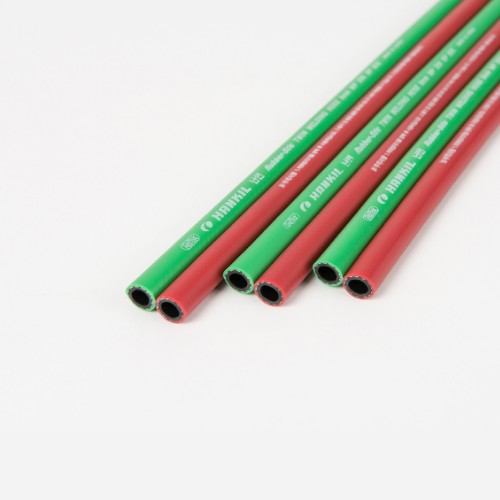

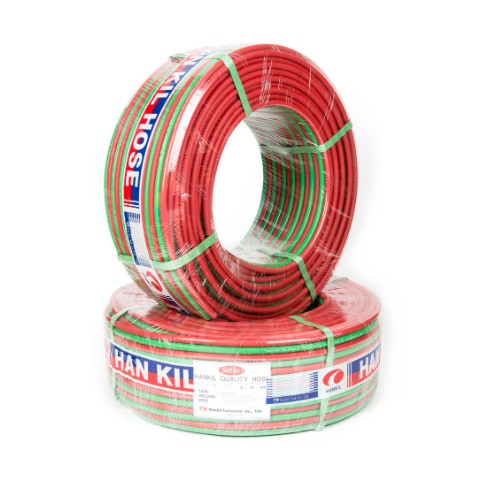

Oxygen Twin Specification & Price Information
| Standard | Inner diameter (mm) |
External diameter (mm) |
Working pressure (kgf/㎠) |
Burst pressure (kgf/㎠) |
Unit Package (M) |
Price | |
|---|---|---|---|---|---|---|---|
| (mm) | (inch) | ||||||
| 5 | 1/5 | 5 | 11 | 20 | 80 | 100 | 117,000 |
| 6.5 | 6.5 | 12.5 | 20 | 80 | 100 | ||
| 8 | 5/16 | 8 | 14 | 20 | 80 | 100 | 137,000 |
※ Special specifications other than the above specifications can be made to order.
Oxygen Single Specification & Price Information
| Standard | Inner diameter (mm) |
External diameter (mm) |
Working pressure (kgf/㎠) |
Burst pressure (kgf/㎠) |
Unit Package (M) |
Price | |
|---|---|---|---|---|---|---|---|
| (mm) | (inch) | ||||||
| 5 | 1/5 | 5 | 11 | 20 | 80 | 100 | |
| 6.5 | 6.5 | 12.5 | 20 | 80 | 100 | ||
| 8 | 5/16 | 8 | 14 | 20 | 80 | 100 | 60,000 |
※ Special specifications other than the above specifications can be made to order.
LPG Single Specification & Price Information
| Standard | Inner diameter (mm) |
External diameter (mm) |
Working pressure (kgf/㎠) |
Burst pressure (kgf/㎠) |
Unit Package (M) |
Price | |
|---|---|---|---|---|---|---|---|
| (mm) | (inch) | ||||||
| 5 | 1/5 | 5 | 11 | 20 | 80 | 100 | |
| 6.5 | 6.5 | 12.5 | 20 | 80 | 100 | ||
| 8 | 5/16 | 8 | 14 | 20 | 80 | 100 | 68,000 |
※ Special specifications other than the above specifications can be made to order.
Argon Hose Specification & Price Information
| Standard | Inner diameter (mm) |
External diameter (mm) |
Working pressure (kgf/㎠) |
Burst pressure (kgf/㎠) |
Unit Package (M) |
Price | |
|---|---|---|---|---|---|---|---|
| (mm) | (inch) | ||||||
| 5 (Red Color/Black Color/Gray Color) |
1/5 | 5 | 8 | 20 | 80 | 300 | 82,000 |
| 5 (Red Color/Black Color/Gray Color) |
1/5 | 5 | 8 | 20 | 80 | 100 | 62,000 |
| 8 (Red Color/Black Color/Gray Color) |
5/16 | 8 | 14 | 20 | 80 | 100 | 72,000 |
※ Special specifications other than the above specifications can be made to order.

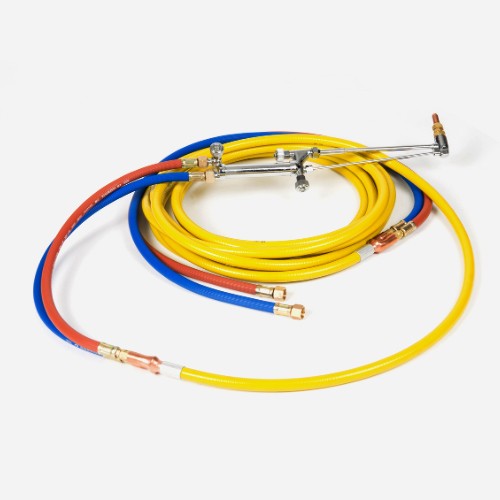

Oxygen Assembly Hose Specification & Price Information
| Standard | Inner diameter (mm) |
External diameter (mm) |
Working pressure (kgf/㎠) |
Burst pressure (kgf/㎠) |
Unit Package (M) |
Price | |
|---|---|---|---|---|---|---|---|
| (mm) | (inch) | ||||||
| 5 | 1/5 | 5 | 10 | 20 | 80 | 10 | 17,500 |
| 15 | 23,900 | ||||||
| 20 | 30,000 | ||||||
| 30 | 44,000 | ||||||
| 50 | 60,000 | ||||||
| 100 | |||||||
| 8 | 5/16 | 8 | 14 | 20 | 80 | 10 | 20,000 |
| 15 | 30,000 | ||||||
| 20 | 40,000 | ||||||
| 30 | 59,000 | ||||||
| 50 | 83,000 | ||||||
※ Special specifications other than the above specifications can be made to order.
One Line Oxygen Hose Specification & Price Information
| Standard | Inner diameter (mm) |
External diameter (mm) |
Working pressure (kgf/㎠) |
Burst pressure (kgf/㎠) |
Unit Package (M) |
Price | |
|---|---|---|---|---|---|---|---|
| (mm) | (inch) | ||||||
| 8 | 5/16 | 8 | 14 | 20 | 80 | 10 | 146,000 |
| 15 | 200,000 | ||||||
| 20 | 270,000 | ||||||
| 30 | 400,000 | ||||||
| 50 | 600,000 | ||||||
※ Special specifications other than the above specifications can be made to order.
| 품명 | 상품페이지 참고 |
|---|---|
| 모델명 | 상품페이지 참고 |
| 법에 의한 인증·허가 등을 받았음을 확인할 수 있는 경우 그에 대한 사항 | 상품페이지 참고 |
| 제조국 또는 원산지 | 대한민국 |
| 제조자 | 한길 |
| A/S 책임자와 전화번호 또는 소비자상담 관련 전화번호 | 02-435-6600 |
